  • 21 October 2024 at 2:25 am in reply to: NB AD Keyboard issue #3429
    Florian Hexenfinger
    Participant
    • Topics: 2
    • Replies: 3
    • Total posts: 5
      Up
      0
      Down
      ::

      Not sure if this is a keyboard issue, I’ll try to recreate it on my test machine.

      20 October 2024 at 5:42 am in reply to: Newbrain Memory Problem #3427
      Florian Hexenfinger
      Participant
      • Topics: 2
      • Replies: 3
      • Total posts: 5
        Up
        0
        Down
        ::

        A 32K SRAM board would be fantastic.

        As the old saying goes – Static RAM works, Dynamic Ram doesn’t.

        20 October 2024 at 4:55 am in reply to: 23128 PROM Dump #3424
        Florian Hexenfinger
        Participant
        Topic Author
        • Topics: 2
        • Replies: 3
        • Total posts: 5
          Up
          0
          Down
          ::

          All done.

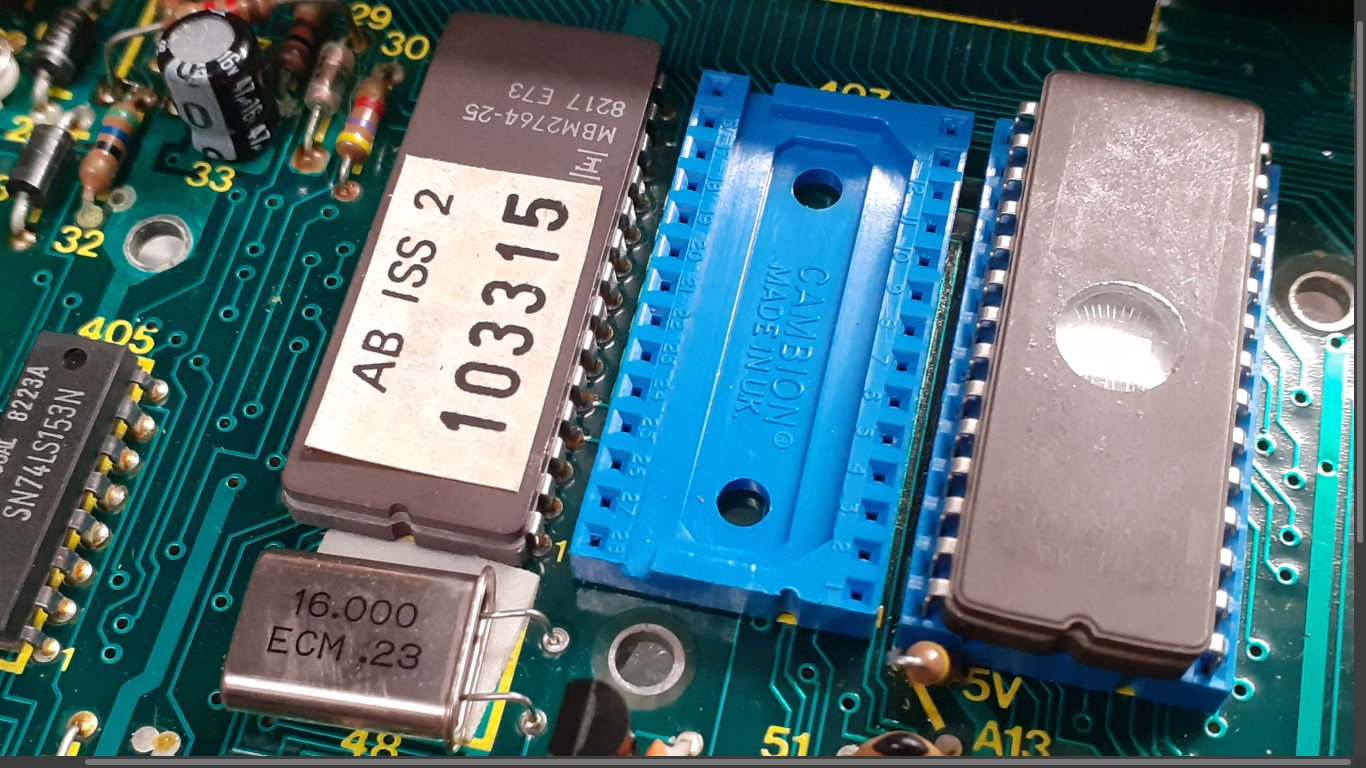

          Removed 2764s from another machine and read them.  Low-profile socketed that board and replaced the originals.  Burned some extra 64s and the 27C128 that was needed, which works without socket modification.

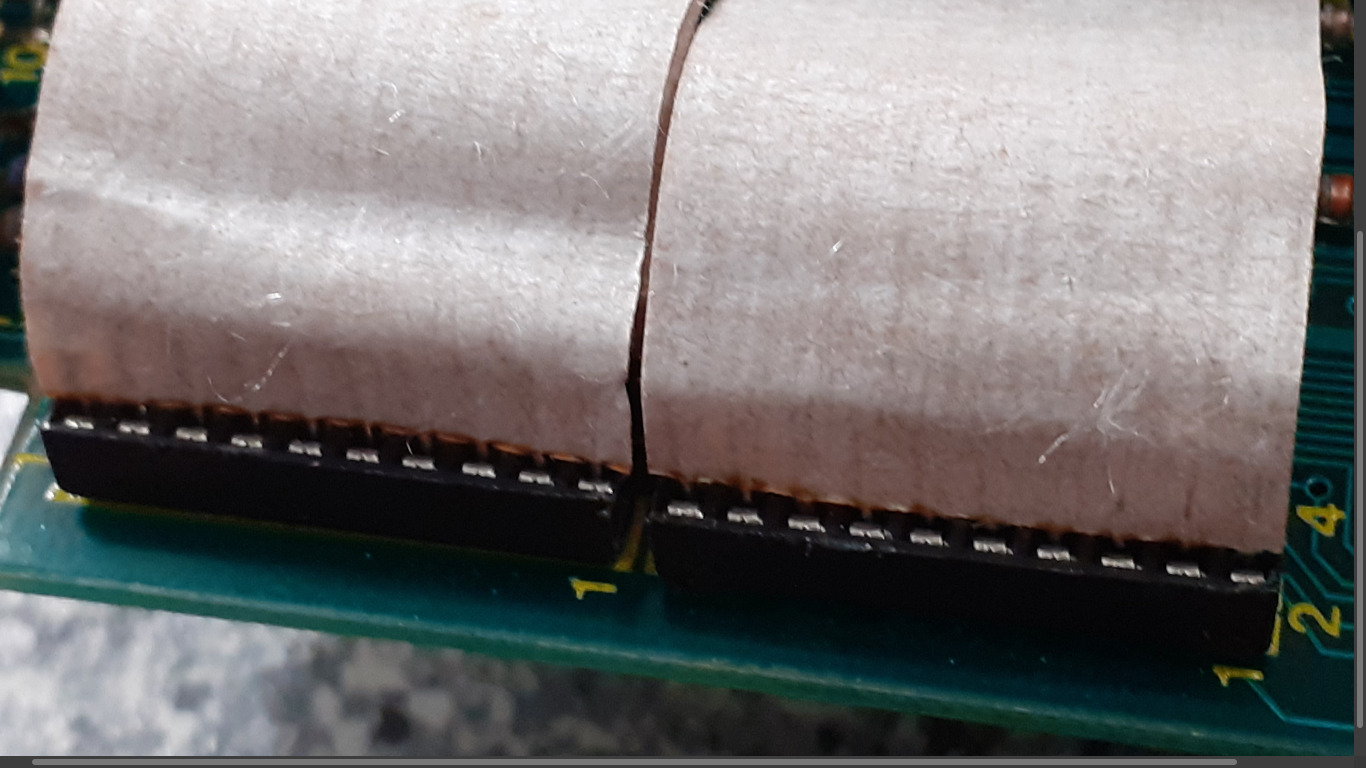

          Also socketed one end of each of the ribbon cables to make future dismantling and testing easier, plus of course the UHF lead from the modulator.

          Then like an idiot found the ROMs in the EMU – same checksums of course…

          Attachments:

          1. 2024-10-20-02-53-11.png

          2. 2024-10-20-02-53-59.png
