      MainBoard 2

      Some signals to check if you have a non working computer

      IC432 pin 10 is 1/8c thats 4MHz

      IC439 pin 4  is 1/16c thats 8MHz

      IC441 pin 8 is nCKVSR thats 8MHz on low res screen OR 16MHz on hi res (open#0,0,”L”)

      IC441 pin 6 is nVDLD thats 8MHz

      IC432 pin 6 is nCOPINT every 13ms

      IC422 pin 9 is nTVL every 20ms

      IC422 pin 1 is nFRMR every 20ms









      • This topic was modified 1 year, 8 months ago by CDesp.
      • This topic was modified 1 year, 8 months ago by CDesp.
    • Creator
      Topic
    Viewing 0 reply threads
    • Author
      Replies
      • 9 August 2024 at 4:25 pm #3332
        CDesp
        Keymaster
        Topic Author
        • Topics: 15
        • Replies: 15
        • Total posts: 30
          Up
          0
          Down
          ::

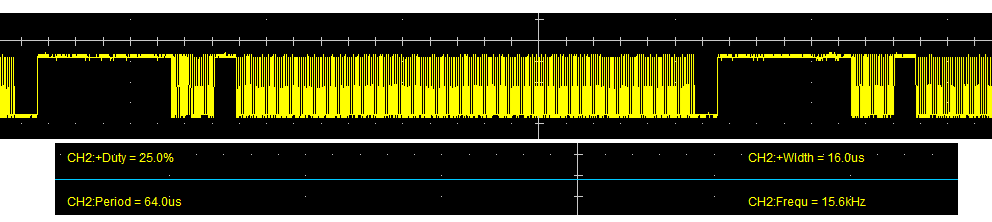

          IC450 pin 4 nFRM

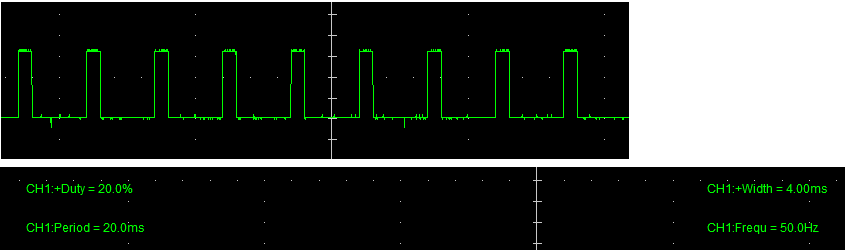

          nFRM

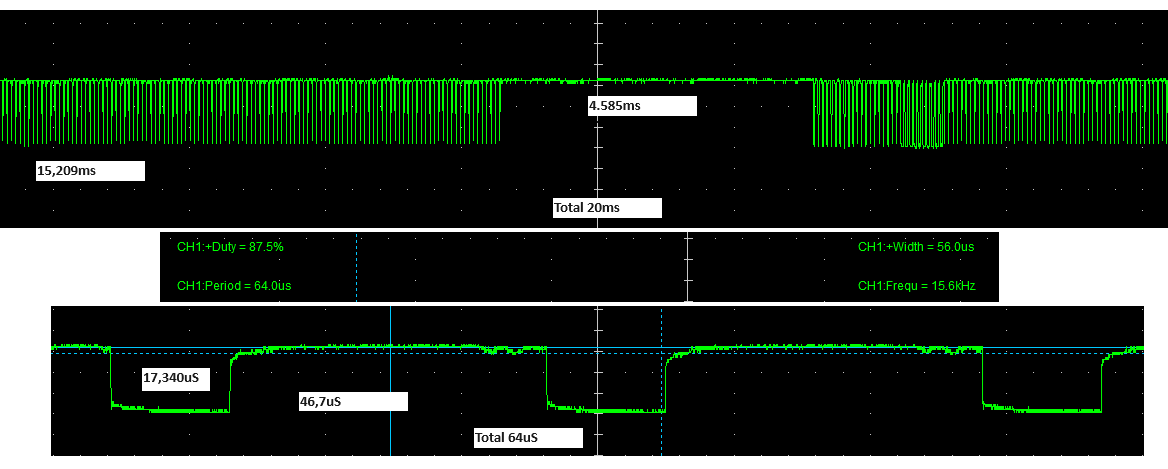

          IC461 pin 1 nRSTFRM

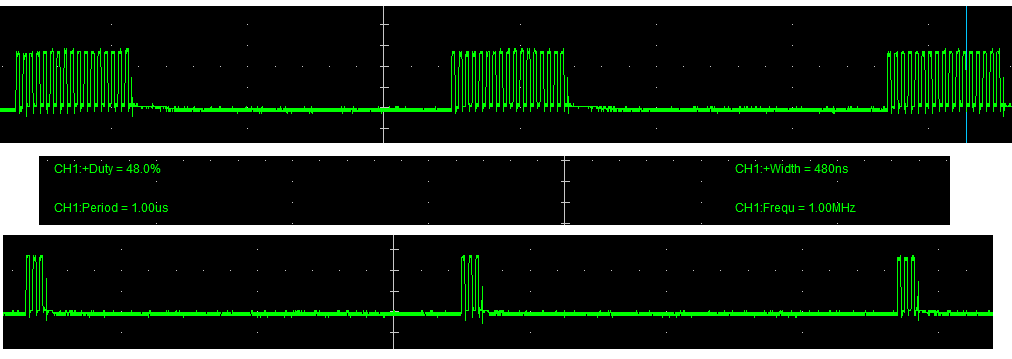

          IC463 pin 3 t141 to FP

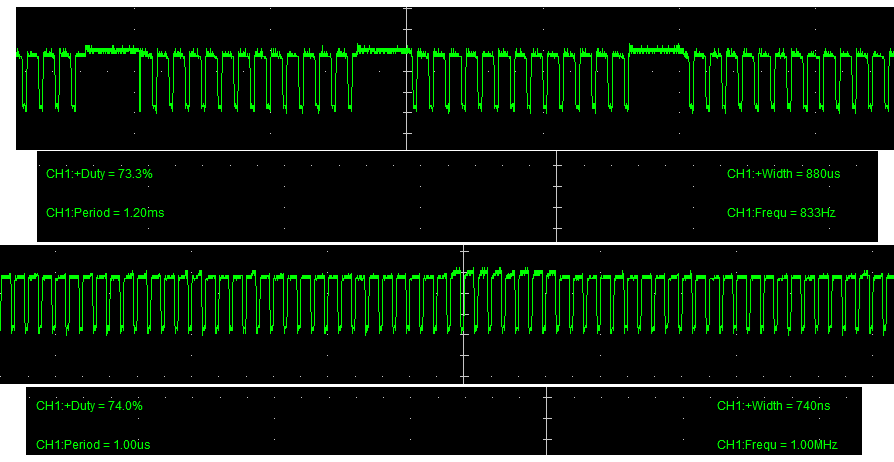

          IC471 pin 12 FP

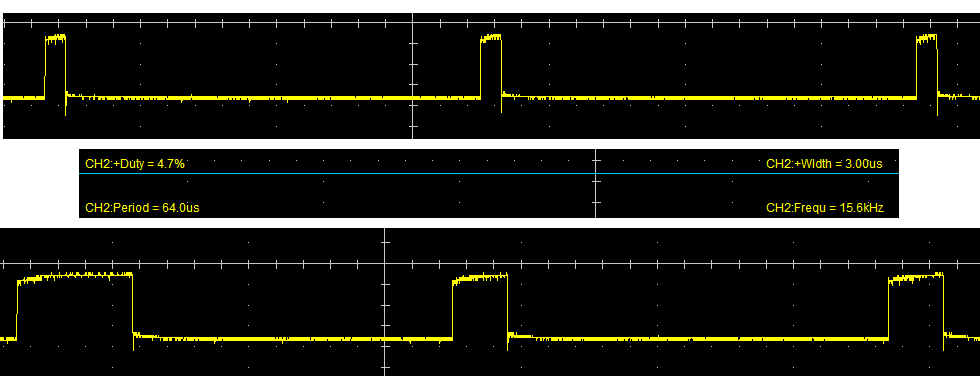

          SB_IC418 pin3 nTVRQP



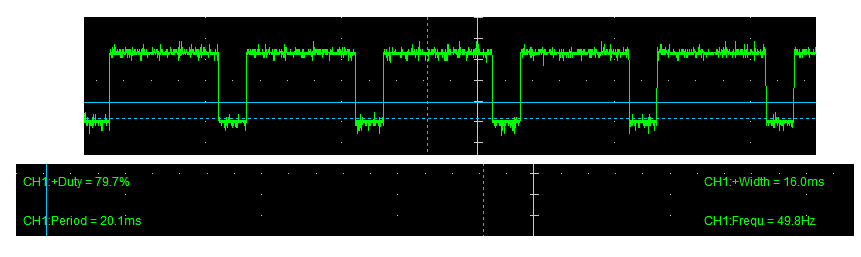

          SB_IC419 pin3 TVAD

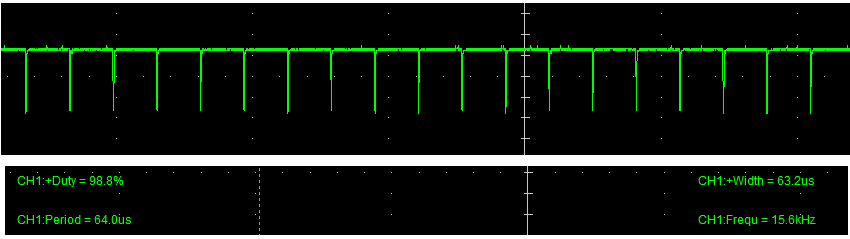

          SB_IC419 pin6 nCPQRG

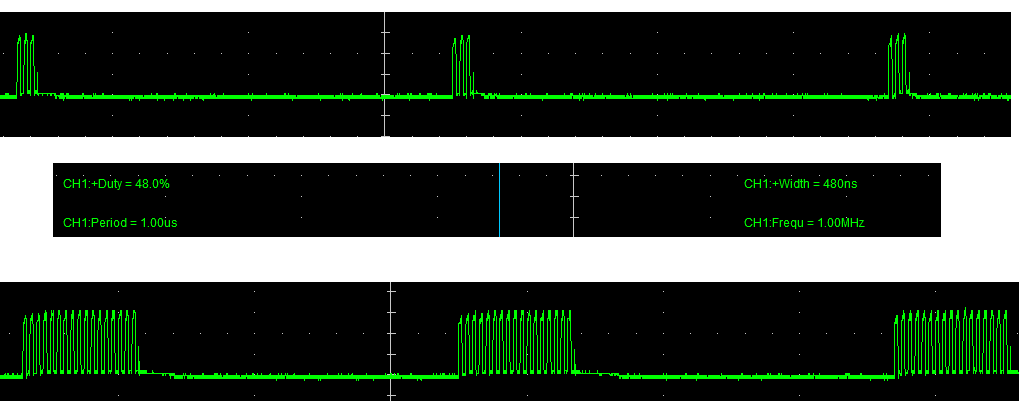

          SB_IC420 pin11 TVCLK

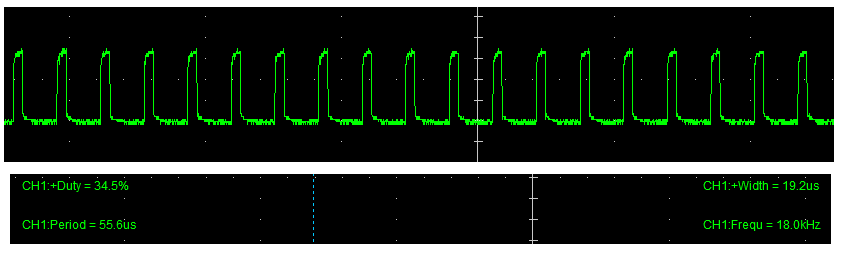

          SB_IC422 pin6 TVSD

          SB_IC423 pin3 nBUSRQ

          • This reply was modified 1 year, 8 months ago by CDesp.
